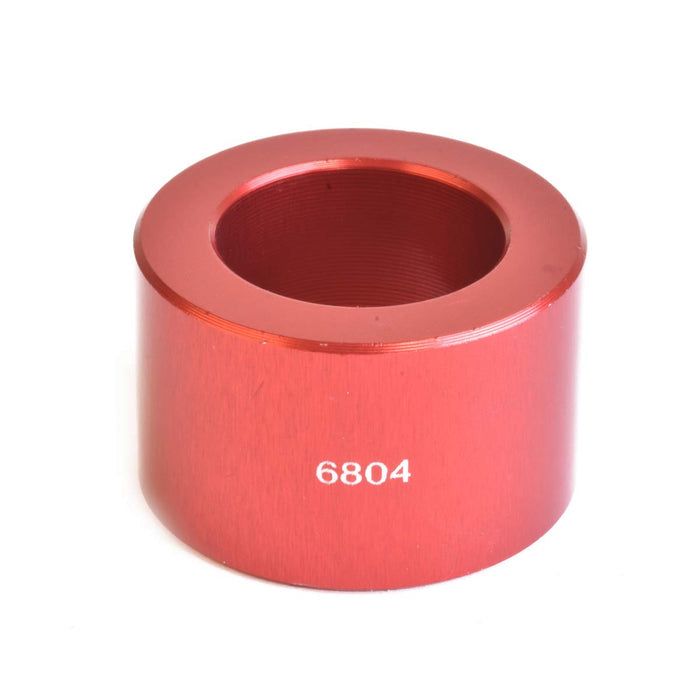

6804 Over Axle Adapter

Our 6804 over axle adapter is used to press 6804 sealed bearings into hub shells or suspension components. An over axle adapter is necessary when the bearing slides over the axle before it is pressed into the hub shell or suspension component. In addition to the adapter, you often need spacers to clear the end of the axle and allow enough clearance for the press to fully push in the bearing.

• Installs: 6804 bearing

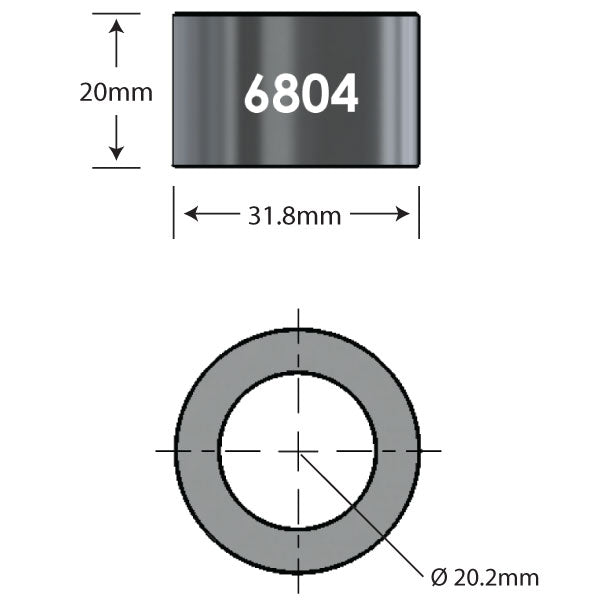

• Outer Diameter: 31.8mm
• Thickness: 20mm
• Thru Hole Diameter: 20.2mm
• Compatible with BP0001 and BP0005
• Machined, red anodized aluminum
• Sold individually (multiple adapters required for some installations)
